Urban construction sites rarely offer the luxury of space. Between property lines, adjacent structures, active traffic lanes, and buried utilities, contractors working in dense city environments often have only a few feet of usable room to stabilize an excavation or slope. In these conditions, soil nailing has become one of the most practical earth retention methods available, largely because it can be installed with smaller equipment, requires less staging area, and adapts to irregular site geometry better than many alternative systems.
For project managers and superintendents planning work in downtown corridors, transit rights-of-way, or infill sites wedged between existing buildings, understanding how soil nailing performs in constrained environments can shape smarter scheduling, mobilization, and subcontractor selection decisions from the start.
Why Tight Urban Sites Create Unique Retention Challenges
Every earth retention method has to account for the same basic problem: holding soil in place while excavation proceeds nearby. In open sites, contractors have flexibility to bring in large drill rigs, stage materials freely, and sequence work with wide access lanes. Urban corridors remove most of that flexibility.
Common constraints on tight urban sites include:
- Limited or no laydown area for materials, spoils, or equipment
- Adjacent buildings with shallow foundations sensitive to vibration or ground movement
- Overhead obstructions such as power lines, pedestrian bridges, or building overhangs
- Underground utilities that limit where drilling or excavation can occur
- Restricted work hours due to noise ordinances or traffic management requirements
- Sidewalks and roadways that must remain partially or fully open during construction
These conditions rule out or complicate many conventional retention systems, particularly those that rely on large cranes, wide drill patterns, or significant excavation before the wall system is installed. Soil nailing, by contrast, is built around a top-down installation sequence that works with the space available rather than against it.
How Soil Nailing Fits Constrained Sites
Soil nailing works by installing steel bars, or nails, into the soil in a grid pattern as excavation proceeds downward in lifts. Each lift is cut, the nails are drilled and grouted into place, and a shotcrete facing is applied before the next lift begins. Because the system is built in stages that match the excavation sequence, there is no need to pre-install a wall before digging starts, which is a major advantage on sites where staging space is scarce.
The equipment used for soil nailing tends to be smaller and more maneuverable than what is required for drilled shaft walls, sheet pile driving, or large tieback systems. Track-mounted drill rigs designed for soil nailing can often operate in access corridors as narrow as eight to ten feet, and many rigs can be broken down or repositioned without needing a large crane for setup.
This matters directly on urban jobs where:
- The excavation footprint is bordered on multiple sides by existing structures
- There is no room for a perimeter access road around the site
- Work must proceed in narrow benches between an existing building and a property line
- Equipment must be walked into position rather than delivered by low-boy trailer
Equipment Considerations for Urban Soil Nailing Work
While soil nailing generally requires a smaller equipment footprint than other retention systems, contractors still need to think carefully about the specific gear involved and how it will function within the site’s constraints.
Drill Rig Selection
Not all soil nailing rigs are built the same. Track-mounted rigs vary significantly in width, mast height, and turning radius. On a tight urban corridor, a rig that performs well on an open highway cut slope may be entirely impractical. Contractors should evaluate:
- Overall rig width relative to the narrowest point of the access path
- Mast height clearance, especially near overhead utilities or building overhangs
- Whether the rig can articulate or rotate within a confined footprint
- Ground bearing pressure, particularly near basement walls or shallow utilities
Some projects require specialty compact rigs designed specifically for confined access work. These rigs sacrifice some drilling speed for maneuverability, which is often a worthwhile trade-off when the alternative is not being able to access the work area at all.
Grout Plants and Material Delivery
Soil nailing requires a steady supply of grout, which means a grout plant needs to be positioned somewhere on or near the site. In open conditions, this is a simple logistics question. In an urban corridor, it can become one of the more difficult puzzles to solve.
Options include:
- Locating a compact grout plant on an adjacent lot or leased parking area
- Pumping grout over a longer distance from a plant positioned outside the immediate work zone
- Coordinating delivery schedules tightly with concrete trucks and other deliveries competing for the same curb space
- Using smaller batch quantities delivered more frequently rather than a single large plant setup
Because grout delivery timing directly affects how quickly a nail can be installed and tested, this is not a detail to leave until mobilization week. It needs to be part of the site logistics plan from the earliest planning stages.

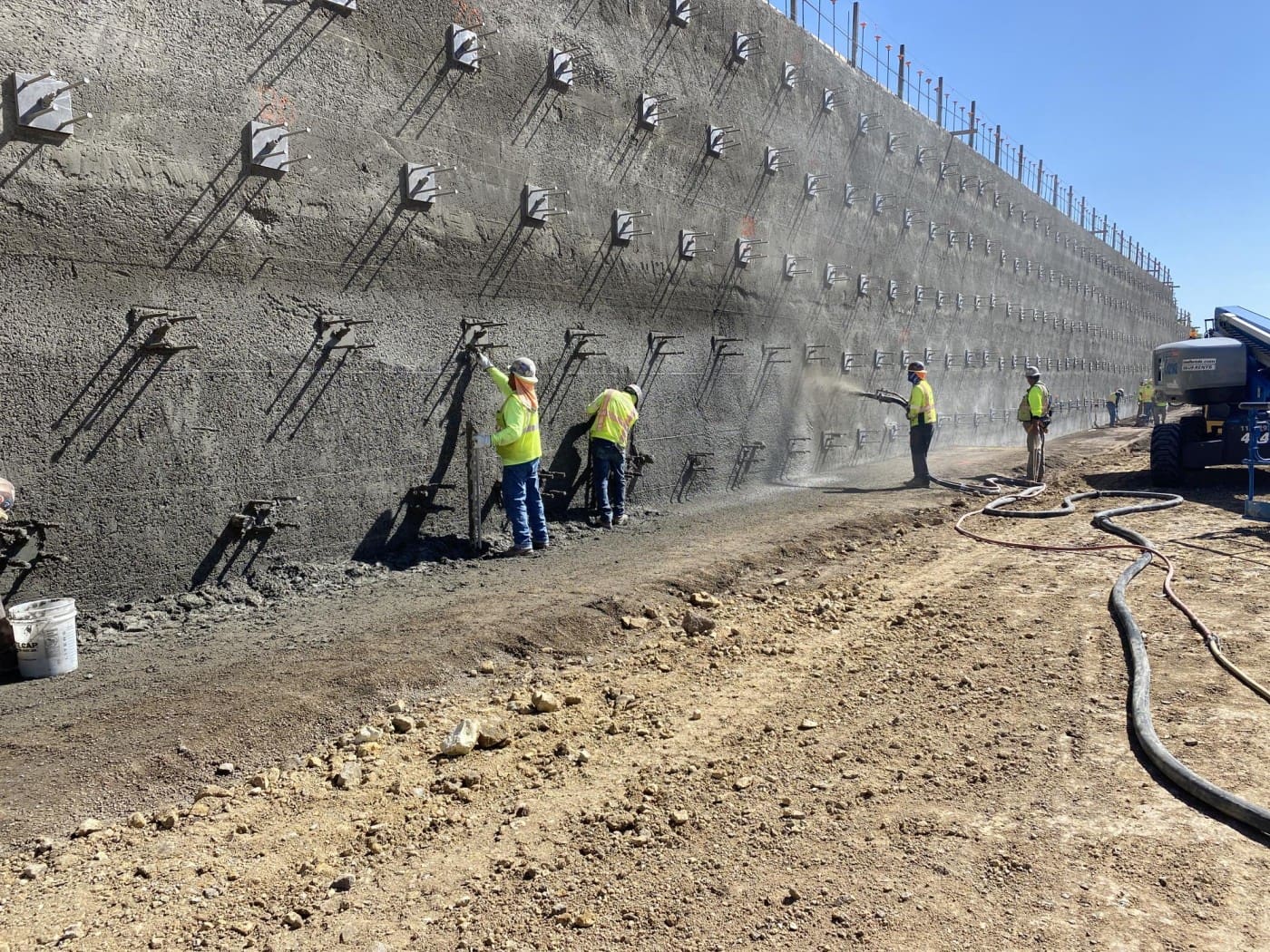

Shotcrete Application in Confined Spaces
The shotcrete facing that finishes a soil nail wall also requires equipment and material staging, typically a shotcrete pump and a nearby batch or delivery source. In narrow corridors, contractors often need to coordinate hose runs over long distances or through building lobbies, alleyways, or temporary openings, which requires careful planning to avoid conflicts with other trades working nearby.
Overspray and rebound material also need a containment plan. On sites bordered by sidewalks, active roadways, or neighboring businesses, protecting adjacent surfaces from shotcrete overspray is both a practical and a public relations consideration.
Material Staging and Nail Storage
Soil nail bars, casing, and grout materials all need somewhere to sit before installation. On a spacious site, this is a non-issue. On a tight urban lot, contractors often need to plan for just-in-time deliveries, vertical storage racks, or off-site staging with frequent smaller deliveries timed around traffic and loading restrictions.
Managing Access Logistics Before Work Begins
Because soil nailing depends on getting the right equipment into a confined space, much of the real planning work happens before drilling ever starts. Site walks with the geotechnical contractor should identify:
- The narrowest points along the intended access path
- Load limits for any decking, ramps, or temporary structures the equipment will cross
- Coordination needs with adjacent property owners if any staging will occur off the main site
- Sequencing of deliveries to avoid gridlock in single-lane access corridors
- Permit requirements for lane closures, sidewalk closures, or temporary utility relocations
Contractors experienced in urban geotechnical work typically walk the site multiple times with the actual equipment specifications in hand, rather than relying on general dimensions. A rig that fits on paper can still create problems in the field if turning radius, outrigger clearance, or ground conditions were not fully accounted for.
Vibration and Adjacent Structure Considerations
Urban corridors almost always mean neighboring buildings are close by, sometimes only inches away at the property line. Drilling and grouting for soil nails generally produce lower vibration levels than driven pile systems or heavy impact equipment, which is one reason the method is often favored near sensitive structures. Even so, contractors should plan for:
- Pre-construction condition surveys of adjacent buildings
- Vibration monitoring during drilling operations
- Clear communication protocols with neighboring property owners or tenants
- Adjustments to drilling technique or equipment if monitoring data shows unexpected movement
This kind of monitoring program is standard practice on sensitive urban sites and should be built into the schedule and budget rather than treated as an afterthought.
Planning Ahead Pays Off
Soil nailing offers real advantages in tight urban corridors: smaller equipment, top-down installation that matches excavation sequencing, and lower vibration impact on neighboring structures. But those advantages only materialize when access logistics, equipment selection, and material staging are planned thoroughly before the first nail goes in the ground.
For project teams evaluating retention options on a constrained urban site, the conversation with a geotechnical specialty contractor should start early and should include real equipment dimensions, real access measurements, and a clear plan for grout, shotcrete, and material delivery. Getting these details right before mobilization is often what separates a smooth installation from a costly series of field adjustments.
